Time to bring back the nice pictures of the decapped Amstrad CPC (ok, PCW and NC too… :smiley: ) chips for everyone’s enjoyment and reference.

This first post will serve also as a test for linking special types of pictures, like Deep Zoom Images.

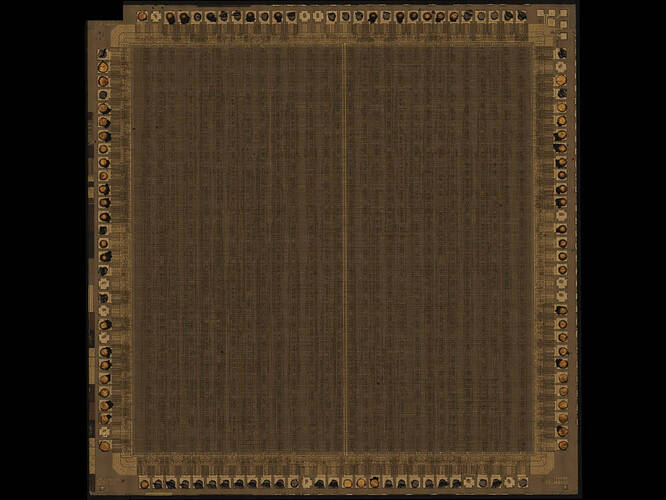

Amstrad 40226 Pre-ASIC metal layer

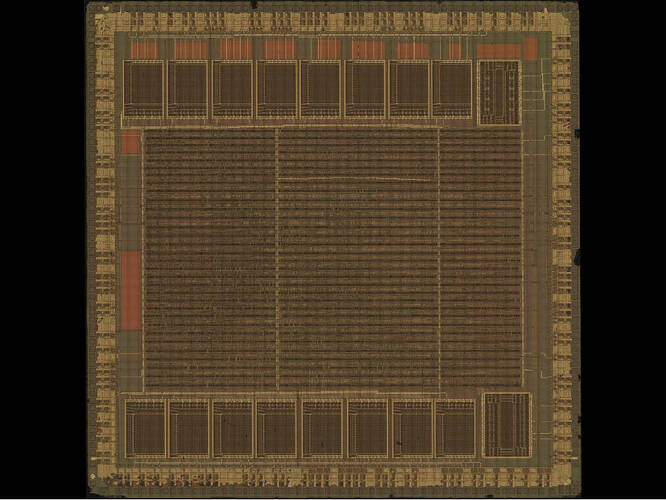

Amstrad 40489 ASIC (Metal layer)

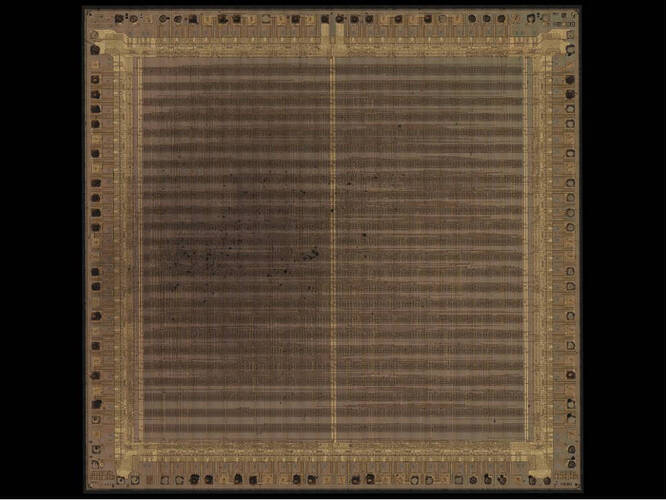

Amstrad 40489 ASIC (Metal layer removed)

3 Likes
2

Ohhh it works :slightly_smiling_face:

1 Like
3

Amstrad NC100 D65035 ASIC (Metal layer)

3 Likes
4

Here are two more deep zoom images, enjoy!

Amstrad CPC Cost-down 40226 Pre-ASIC (Metal layer removed)

Amstrad PCW 40028 ASIC (Metal layer)
